Delivering 24,000 Btu for cooling and 24,300 Btu for heating, this unit is ideal for large spaces. It features a cooling EER of 3.05 W/W and a heating COP of... more
Category: Split-System Air Conditioners
Delivering 24,000 Btu for cooling and 24,300 Btu for heating, this unit is ideal for large spaces. It features a cooling EER of 3.05 W/W and a heating COP of... more
Category: Split-System Air Conditioners

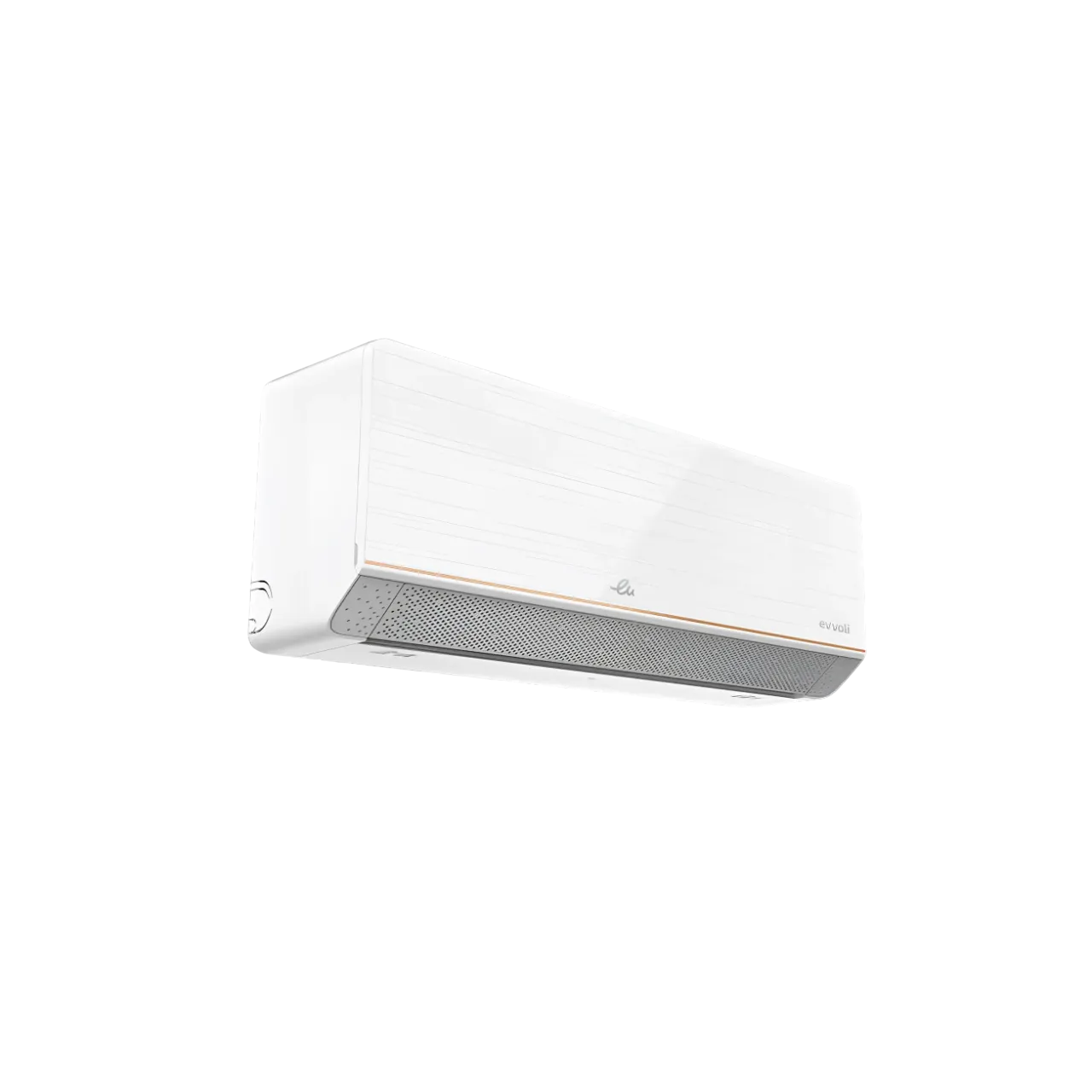

Delivering 24,000 Btu for cooling and 24,300 Btu for heating, this unit is ideal for large spaces. It features a cooling EER of 3.05 W/W and a heating COP of 3.2 W/W, ensuring efficient energy use. The outdoor unit, with a HIGHLY rotary compressor, operates at a low noise level of 48 dB(A). The indoor unit provides a maximum airflow of 1300 m3/h while maintaining a quiet 39 dB(A). Copper components ensure long-term reliability and effective heat transfer.
Cooling (t1) Capacity | 24000 Btu |
Cooling (t1) Current | 10 A |
Cooling (t1) Eer | 3.05 W/w |
Heating Capacity | 24300 Btu |
Heating Cop | 3.2 W/w |
Heating Current | 10 A |
Indoor Unit Evaporator Bend | 3 |
Indoor Unit Evaporator Pipe Diameter | 7 Mm |
Indoor Unit Evaporator Pipe Material | Copper |
Indoor Unit Evaporator Row | 2 |
Indoor Unit Fan Motor | D-310-50-10a |
Indoor Unit Max. Noise | 39 Db(a) |
Max. Air Flow Volume | 1300 M3/h |
Max. Current | 16 A |
Max. Power Input | 3100 W |
Outdoor Unit Compressor Brand | Highly |
Outdoor Unit Compressor Model | Ash264 |
Outdoor Unit Compressor Type | Rotary |
Outdoor Unit Condenser Pipe Diameter | 7 Mm |
Outdoor Unit Condenser Pipe Material | Copper |
Outdoor Unit Condenser Row | 2 |
Outdoor Unit Fan Motor | Cw75d |
Outdoor Unit Length Of Pipe Kit | 4 M |
Outdoor Unit Max. Noise | 48 Db(a) |
