This powerful HVAC unit operates on a 220-240V, single-phase, 50Hz power supply, delivering a cooling capacity of 24,000 BTU (T1) with an EER of 3.0716 W/W. Under T3 conditions, it... more
Category: Mobile Air Conditioners
This powerful HVAC unit operates on a 220-240V, single-phase, 50Hz power supply, delivering a cooling capacity of 24,000 BTU (T1) with an EER of 3.0716 W/W. Under T3 conditions, it... more
Category: Mobile Air Conditioners

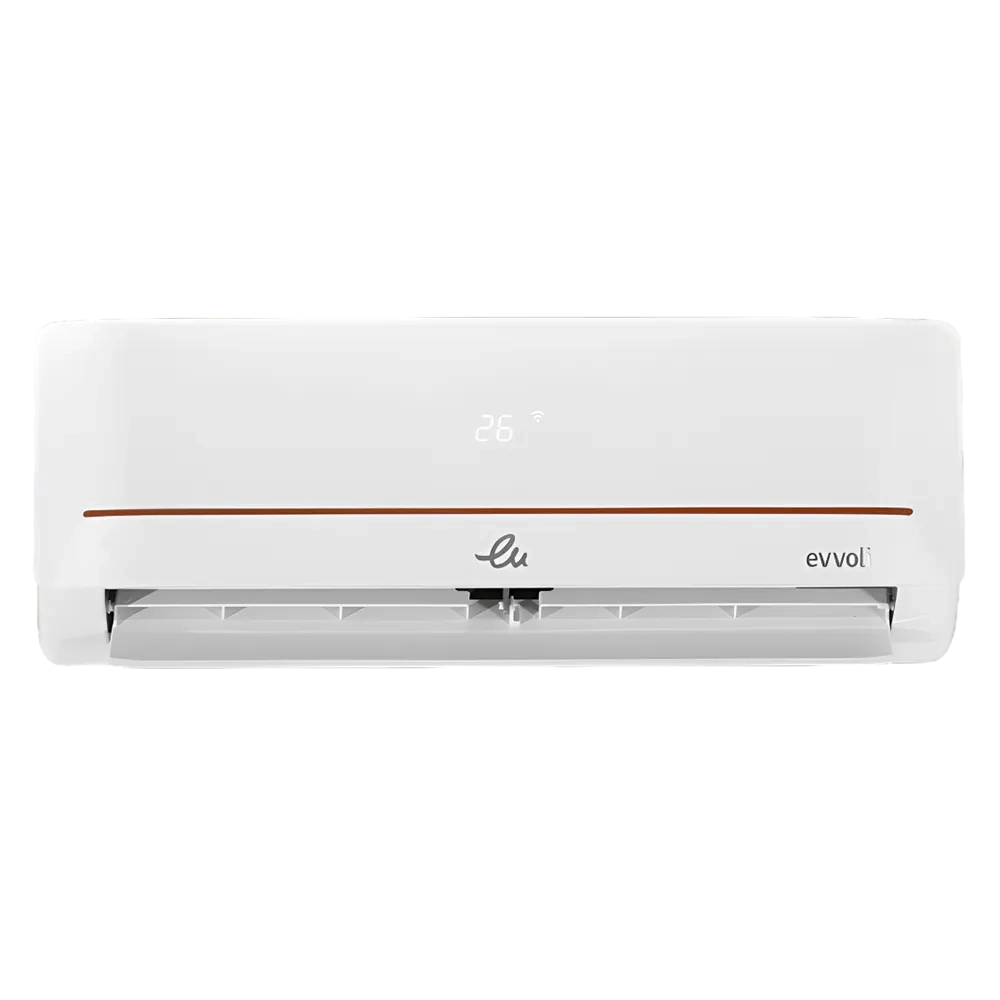

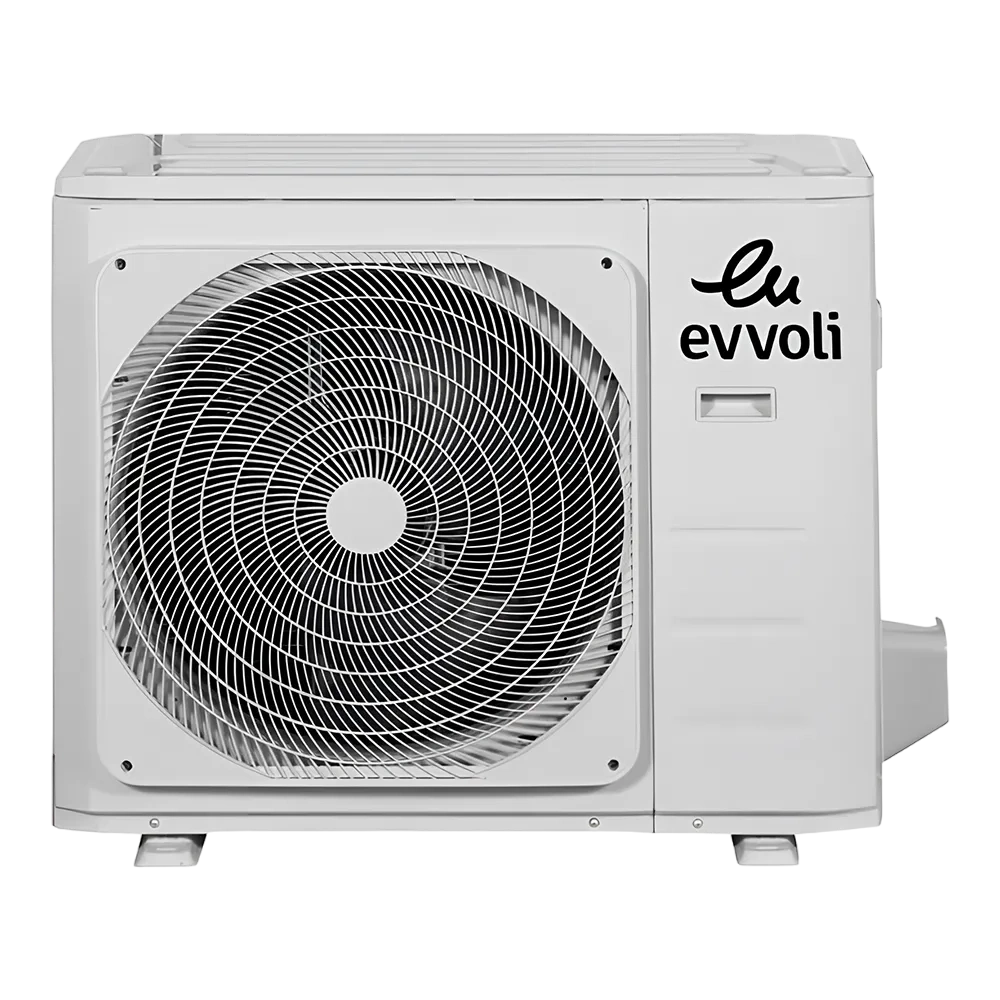

This powerful HVAC unit operates on a 220-240V, single-phase, 50Hz power supply, delivering a cooling capacity of 24,000 BTU (T1) with an EER of 3.0716 W/W. Under T3 conditions, it provides 19,950 BTU cooling with an EER of 2.1998 W/W. Equipped with a COPELAND reciprocating compressor and copper evaporator and condenser piping, this unit ensures efficient performance and durability. With noise levels reaching 48.5-60 dB(A) and a maximum airflow volume of 1150 m3/h, it is suitable for various applications. The system includes a 4-meter pipe kit and supports a rated power input of 3800 W, making it ideal for effective climate control in medium-sized spaces.
Compressor Brand | Copeland |
Compressor Model | Cr30k6m-pf1-101 |
Compressor Type | Reciprocating |
Condenser Pipe Diameter Mm | 7 |
Condenser Pipe Material | Copper |
Condenser Row | 2 |
Cooling (t1) Capacity | 24000 Btu |
Cooling (t1) Current A | 10.2 |
Cooling (t1) Eer W/w | 3.0716 |
Cooling (t3) Capacity | 19950 Btu |
Cooling (t3) Current A | 12.39 |
Cooling (t3) Eer W/w | 2.1998 |
Evaporator Bend | Yes |
Evaporator Pipe Diameter Mm | 7 |
Evaporator Pipe Material | Copper |
Evaporator Row | 2 |
Fan Motor | Ykfg-45-4-22 |
Frequency Hz | 50 |
Length Of Pipe Kit M | 4 |
Max. Air Flow Volume M3/h | 1150 |
Max. Noise Db(a) | 48.5 |
Phase Ph | 1 |
Rated Current A | 20 |
Rated Power Input W | 3800 |
Voltage V | 220-240 |
